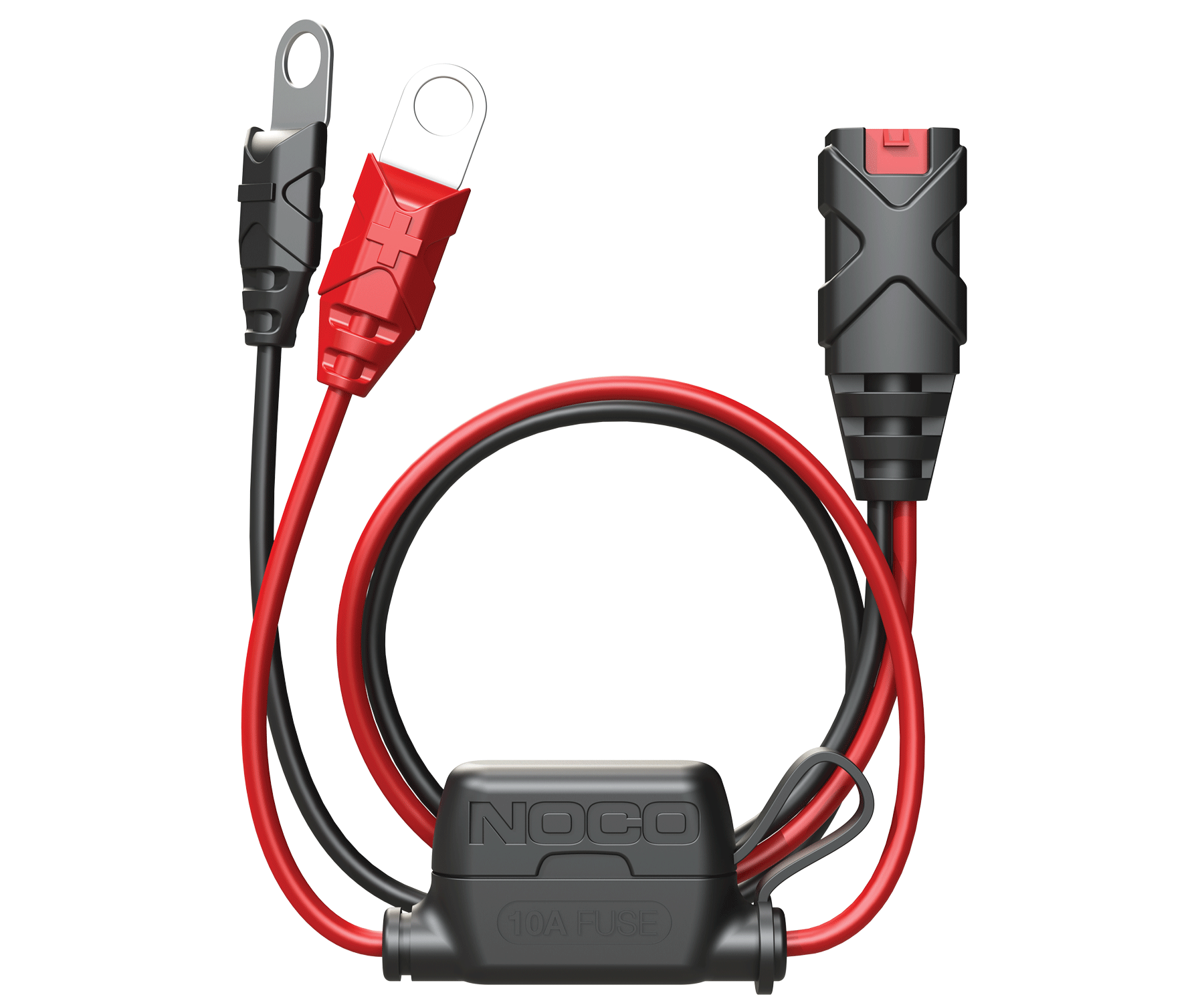

X-Connect ring terminal connection

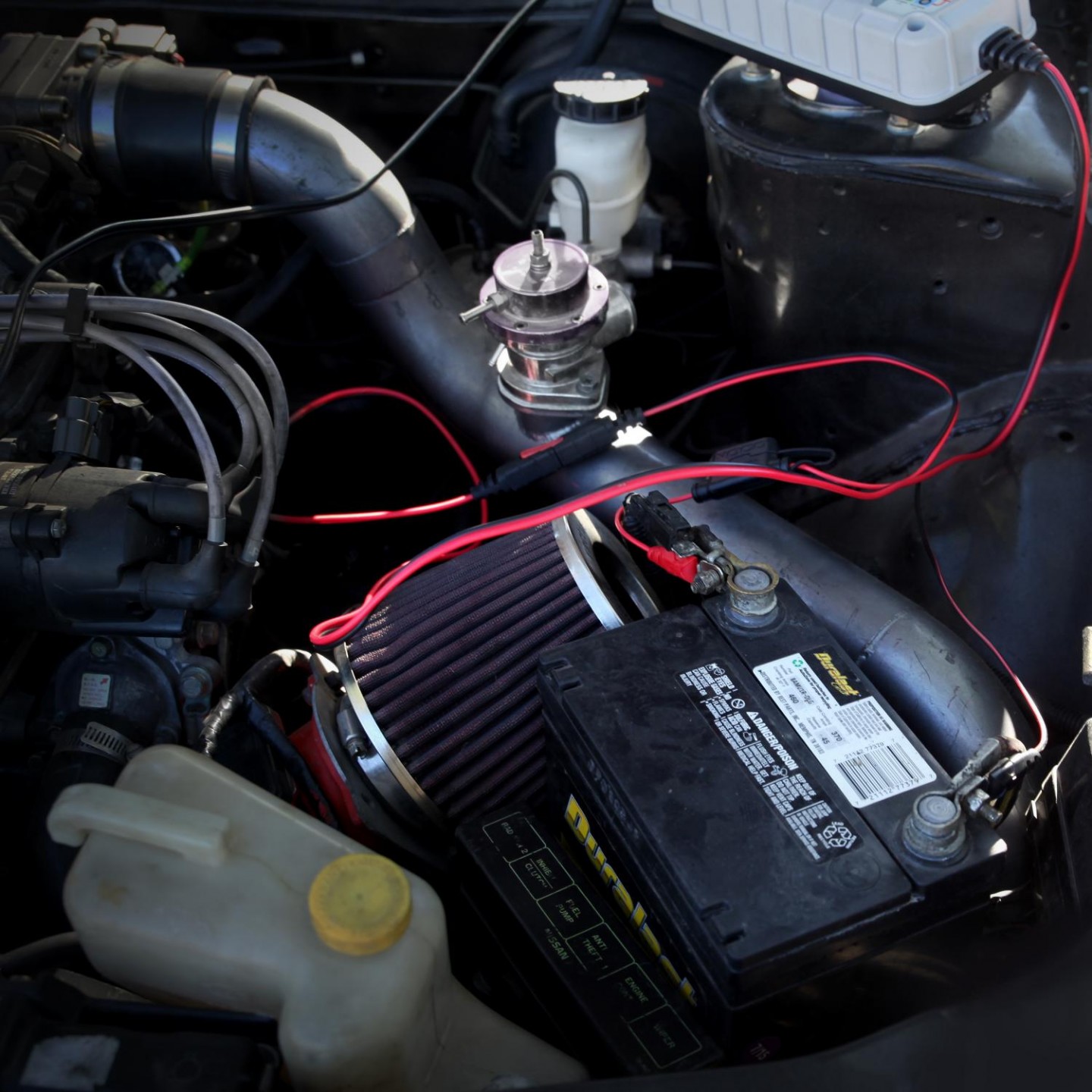

The X-Connect ring terminal allows a battery charger to be quickly connected to any battery. For easy charging, replace a lost connector or permanently attach one to your motorcycle, ATV, snowmobile, personal watercraft, lawnmower, etc.

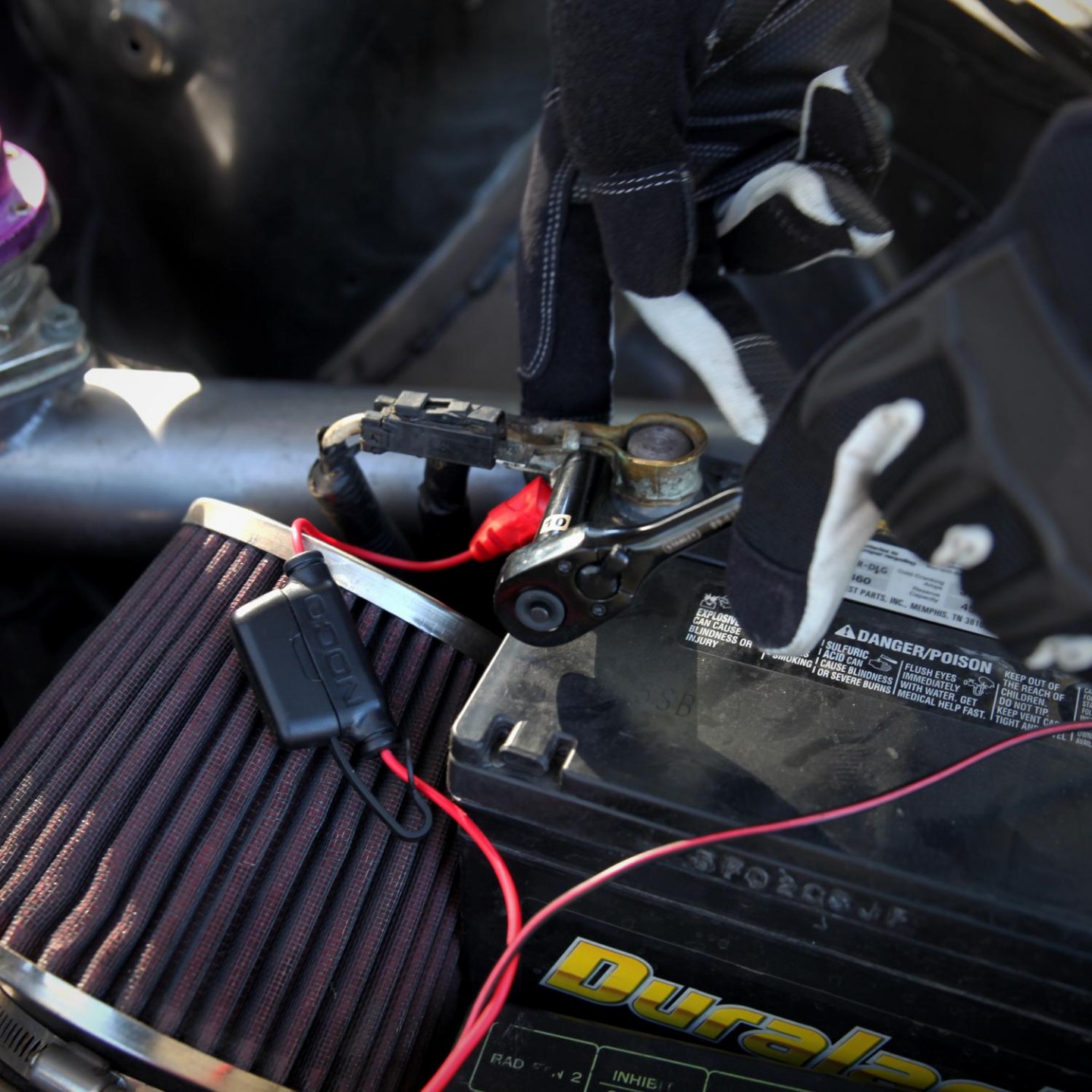

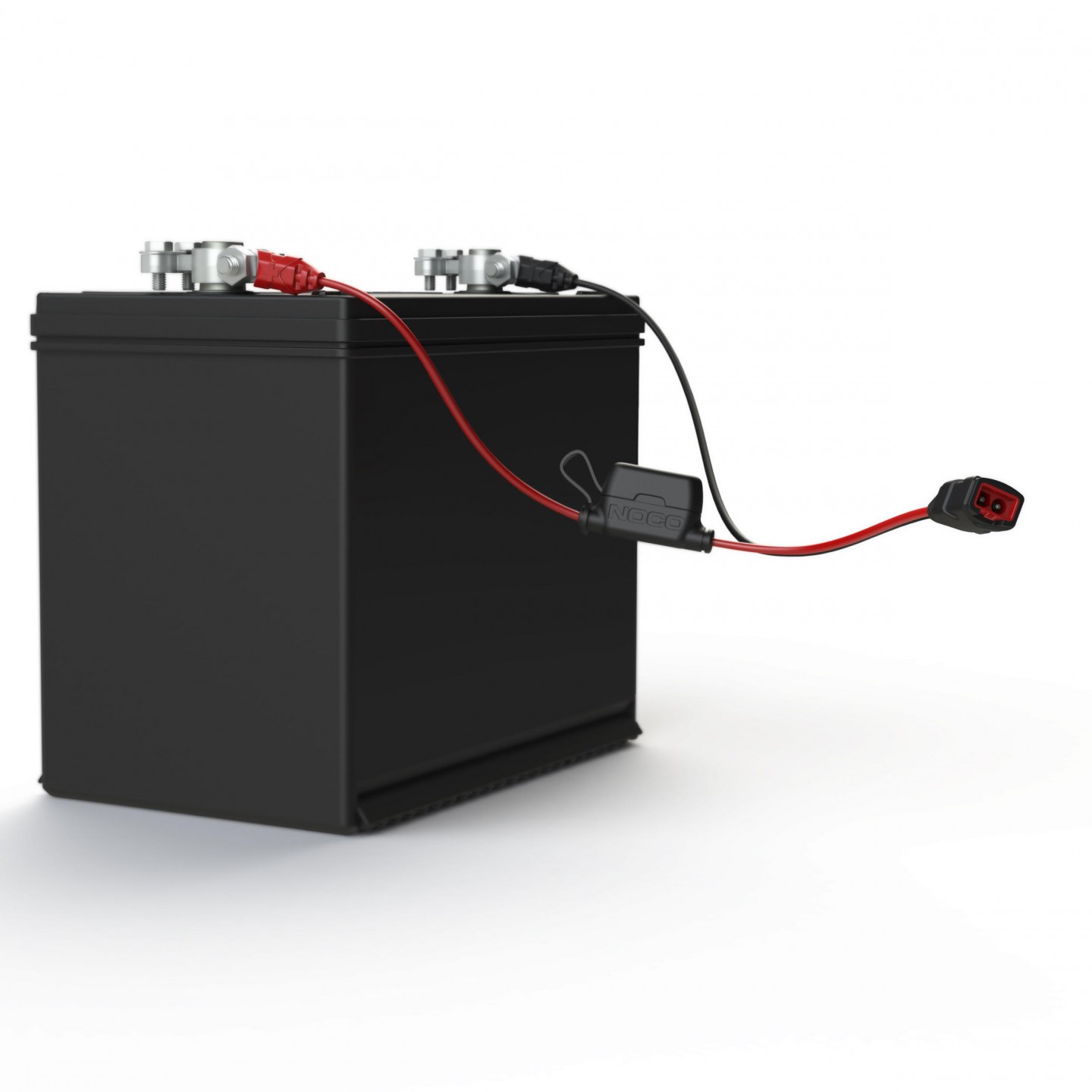

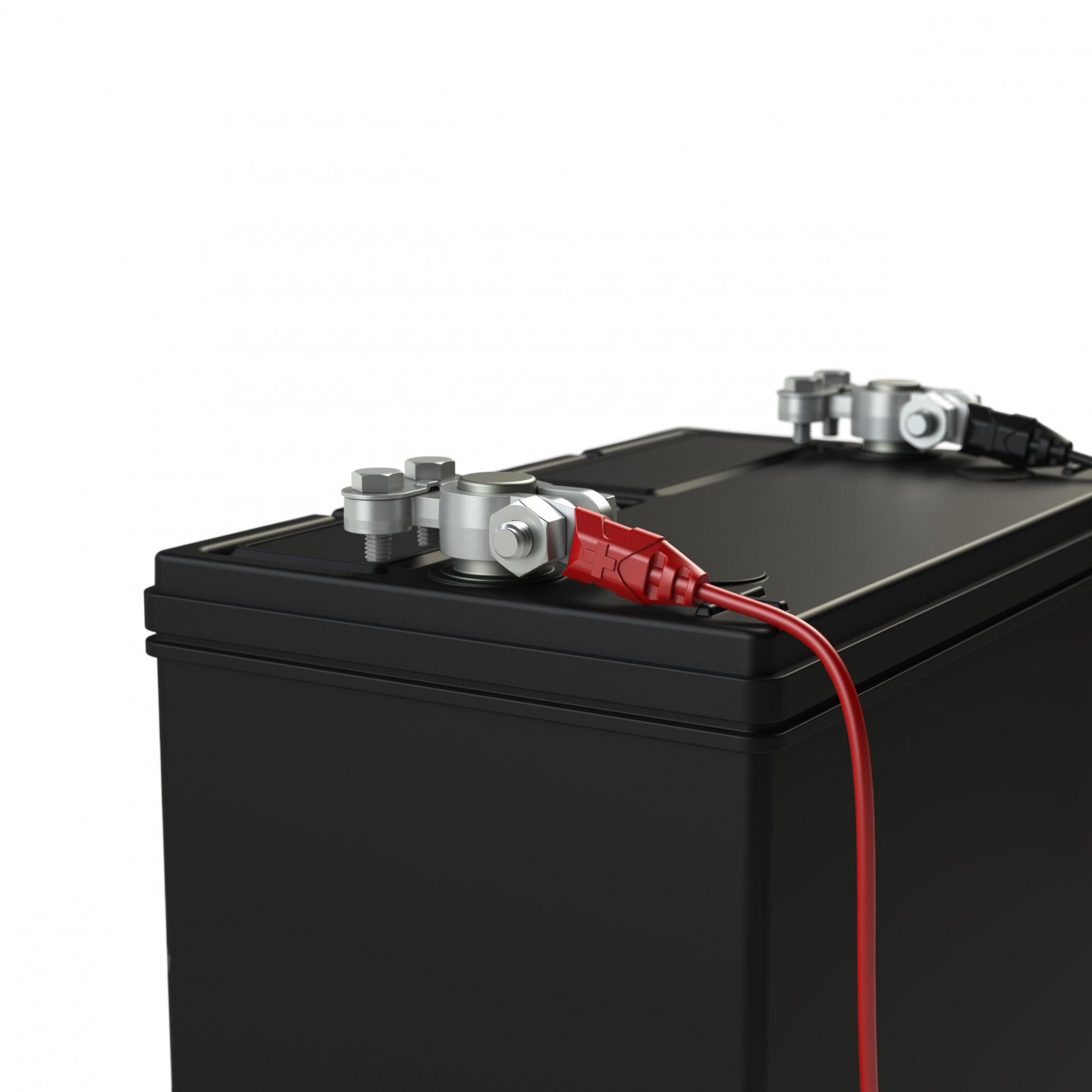

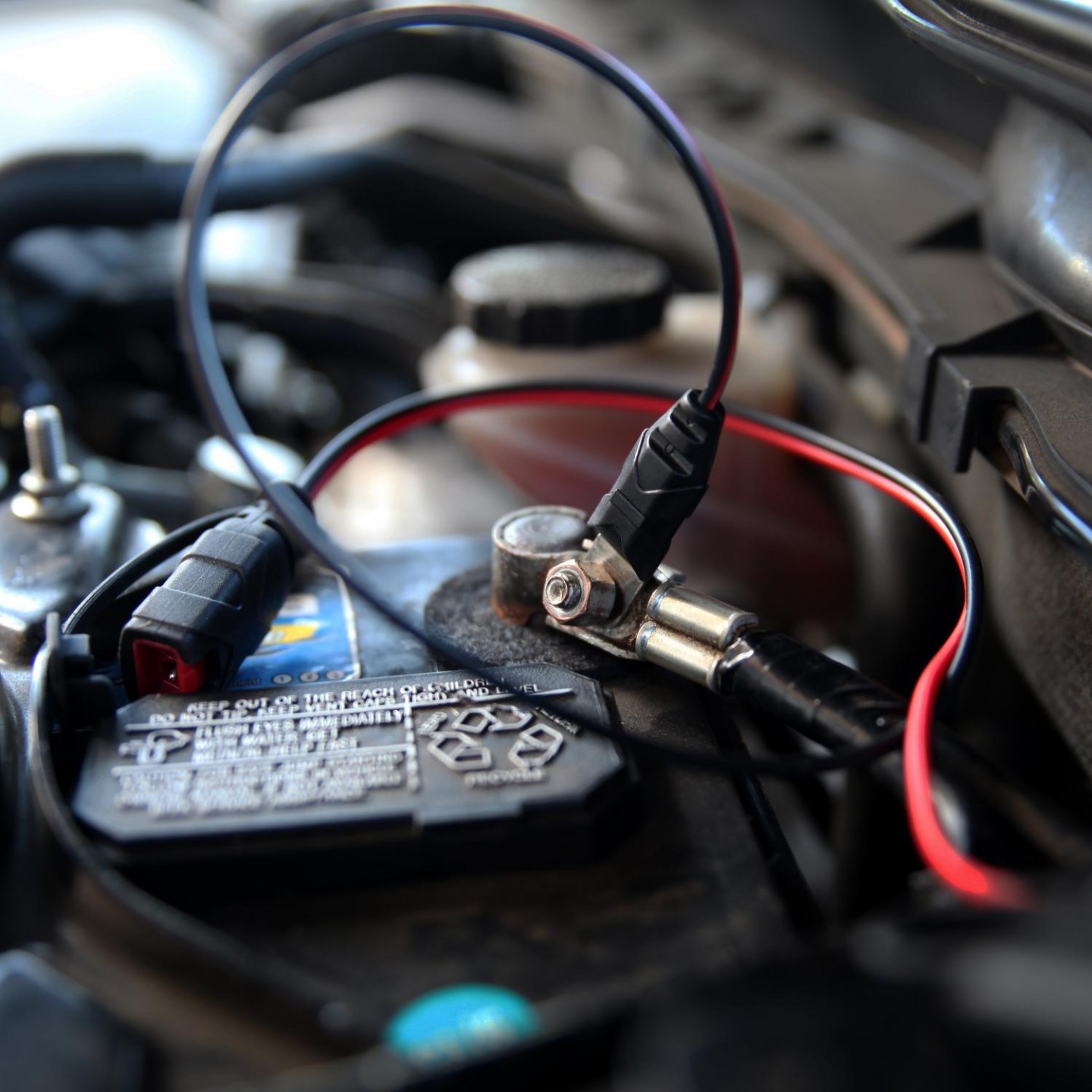

- Attach permanently a battery connector to any battery.
- Flat design for seamless installations with M6 (1/4 inch) hole.
- Built-in fuse protection for increased safety .
- More ways to charge with plug-n-play component changes.
- Reinforced, sealed connector for extreme environments.
Technical specifications.
Input
X-Connect female
Output

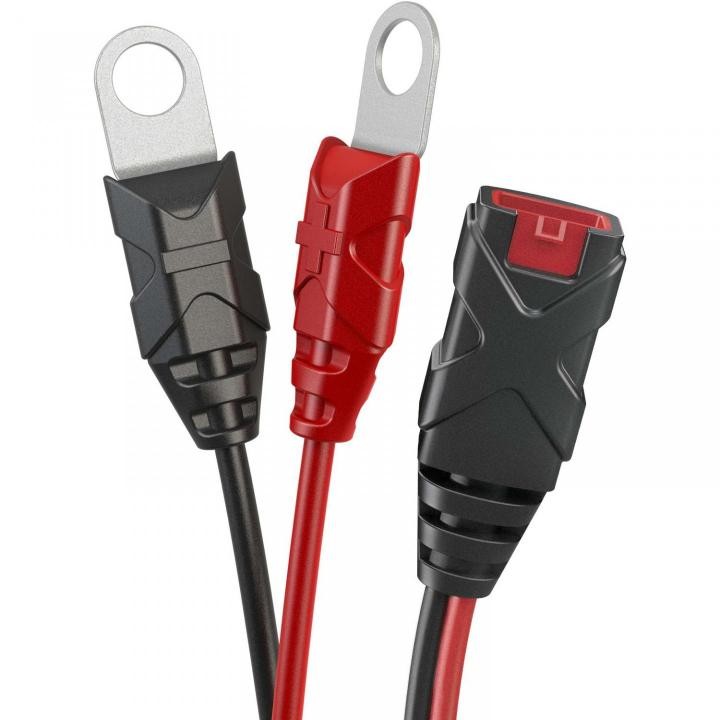

M6 ring terminals (1/4 inch)
Safety
ATC Normal Wing 10 A
Wire Diameter
16AWG
Length
24 inches
Compatible with
G750 (all versions)
G1100 (all versions)
G3500 (all versions)
G7200 (all versions)
G4 (all versions)
BLSOLAR2
BLSOLAR5
XGS4AUTO
XGS9AUTO
