25 Amp Battery Charger, Maintainer and Desulfurizer
Introducing the brand new GENIUSPRO25, a fully automatic professional smart 6 Volt battery charger, maintainer, power supply and desulfurizer , 12 Volt and 24 Volt temperature compensated, 25 Amp rated, for all types of automotive batteries, marine application batteries and deep discharge batteries.
- The brand new GENIUSPRO25 - Similar to the G15000, only more powerful. With the best performance and functionality to date, it's a world-class battery charger that allows professionals to push the limits with incredible charging speeds.
- Do more with Genius - A multi-voltage charger - 6 Volt (25 Amps), 12 Volt (25 Amps) and 24 Volt (12.5 Amps) - for automotive lead-acid batteries, marine application batteries and deep discharge batteries, including immersed, gel, AGM and maintenance-free batteries, as well as lithium-ion batteries.
- Designed for professionals - Designed for professionals who demand the ultimate in performance and functionality without compromise. Features ultra-flexible silicone wiring - down to -40?C - with protective nylon shielding for maximum abrasion protection.
- Progressive power supply - Dual voltage 12 Volt (25 Amp) power supply and 24 Volt (12.5 Amp) - to maintain a stable power supply without unwanted ripples, noise and transient spikes during ECU rewriting, reprogramming and diagnostics.
- Enjoy precision charging - A built-in thermal sensor detects ambient temperature and alternates charging to rule out overcharging in hot climates and undercharging in cold climates, maximizing battery life and enabling rapid charging.
- Dead Battery Charging - Detects very low voltage batteries, even with a 1 Volt charge. Alternatively, use the all-new force function that allows you to manually start charging dead batteries with a zero Volt charge.
- Battery Restoration - Automatically detects battery sulphation and acid stratification to restore of lost battery performance, for stronger engine starts and extended battery life. In addition, it has advanced repair functions for 6 Volt, 12 Volt and 24 Volt batteries.
Technical specifications

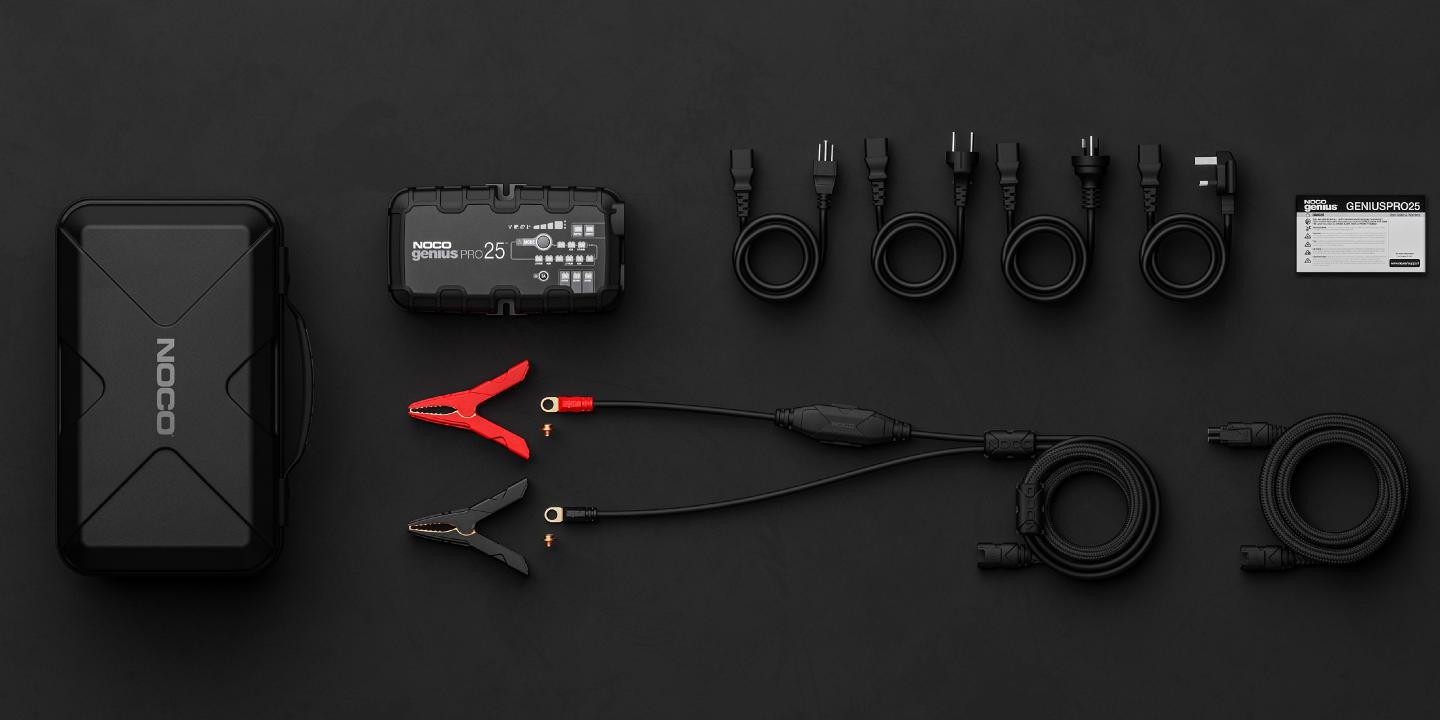

Package Contents
- GENIUSPRO25 Battery Charger with Interchangeable Terminals
- (1) Genius PRO Clamps with Integrated Connecting Rings
- (1) 3 meter extension cable
- (1) EVA case
- (2) Self-tapping screws (sheet metal screws)
- Cables power supply type A, C, G and I
- User guide and warranty information
Operational requirements
Line voltage: 100 V to 240 V AC
Frequency: 50 Hz to 60 Hz
Operating temperature: -20 to 50 °C (-4 to 122 °F)
Storage temperature: -30 to 60 °C (-22 to 140 °F)
Charging
Current: 25 A (6 V, 12 V), 12.5 A (24 V) DC
Voltages: 6 V, 12 V, 24 V
Chemical composition: Lead-acid and lithium
Types: Liquid cells, gel, MF, CA, EFB, AGM, Lithium
Battery capacity range: (6 V and 12 V) Up to and 1,000 Ah, (24 V) Up to 500 Ah.
Maintenance: All battery sizes
Power
Consumption: 375 W max.
Protection
IP degree of waterproof protection: IP20
Safety
Short circuit: Yes
Open circuit: Yes
Overheating: Yes
Overcharging: Yes
Spark Protection: Yes
Reverse Polarity: Yes
Dimensions
Height: 23.6cm (9.3 inches)
Width: 13 cm (5.1 inches)
Depth: 7.6 cm (3.0 inches)
Weight: 1.22 kg (2.7 lbs )
Cable Management
DC Cable: 1.6m (5.4ft)
DC Extension Cable Length: 3m (10ft)
DC Cord Size: 8 AWG
DC Fuse Rating: 35 AMP ANL Fuse
AC Cord Length: 1.8 meters (6 feet)
AC Cord Size: 8 AWG
Oil, Gas, Grease , water, chemical, UV, abrasion resistant
Warranty
3 year warranty
